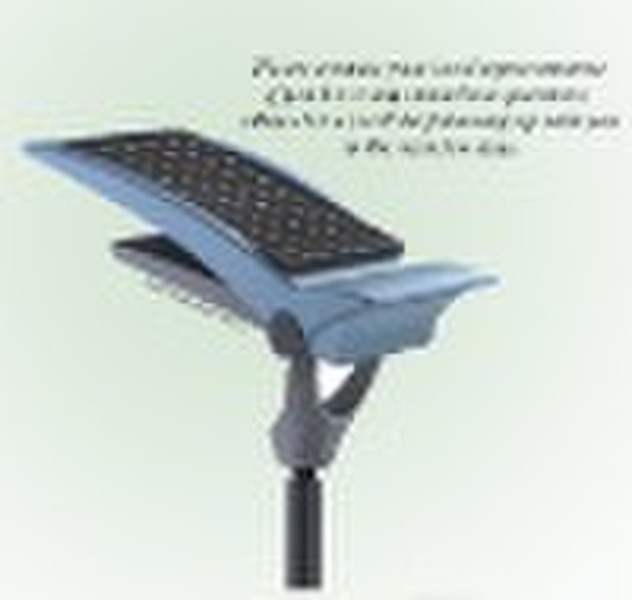

30W LED solar street lamp

30W LED solar street lamp PROJECT: DC 12V 30W LED street lamp with 130W ,DC 17.5V Monocrystallines sillicon cells solar panel, to run 13 hours per day,full power working in the first 5 hours, half power next 8 hours and performance continuous for 7 rainly/cloudly days by a DC12V,250AH battary, a 6M pole. PartTypeSize Solar panelSPM80-MPm(W)180(2 PCS of 90W)Vmp(V)17.2Imp(A)10.46Dimension(mm)992*720*50×2Weight(kg)10.0×2Rated temperature-40——+85 Degreesillicon cellmonocrystallines sillicon cells BatterySWG121800DC Voltage(V)12Capacity(AH)180Dimension(mm)530*209*234Weight(kg)55Rated temperature-40——+65DegreeBattery cellLead-acidLED lamp30WPower(W)30Input Voltage(V)2550Flux(lm)1700Rated temperature-40——+50 DegreeIP65Dimension(mm)360*195*58Weight(kg)3ContollerSBC-6120PV Voltage(V)≤26V DCCharge current(A)≤25A DCRated temperature-10——50 DegreeCharge protectYesDimension(mm)150*85*45 Street lamp pole——5-6M,with bracket of solar panel Battery box——600*300*300mm,IP65 ,jointing with street lamp pole or bury underground.
